Stabilize production with digital coating insights
SprayCapture®.

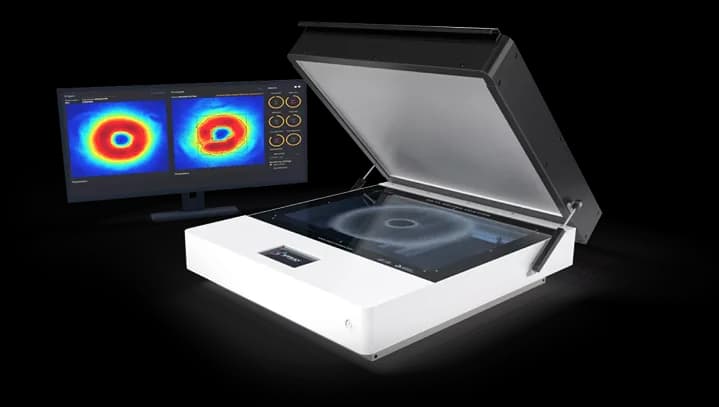

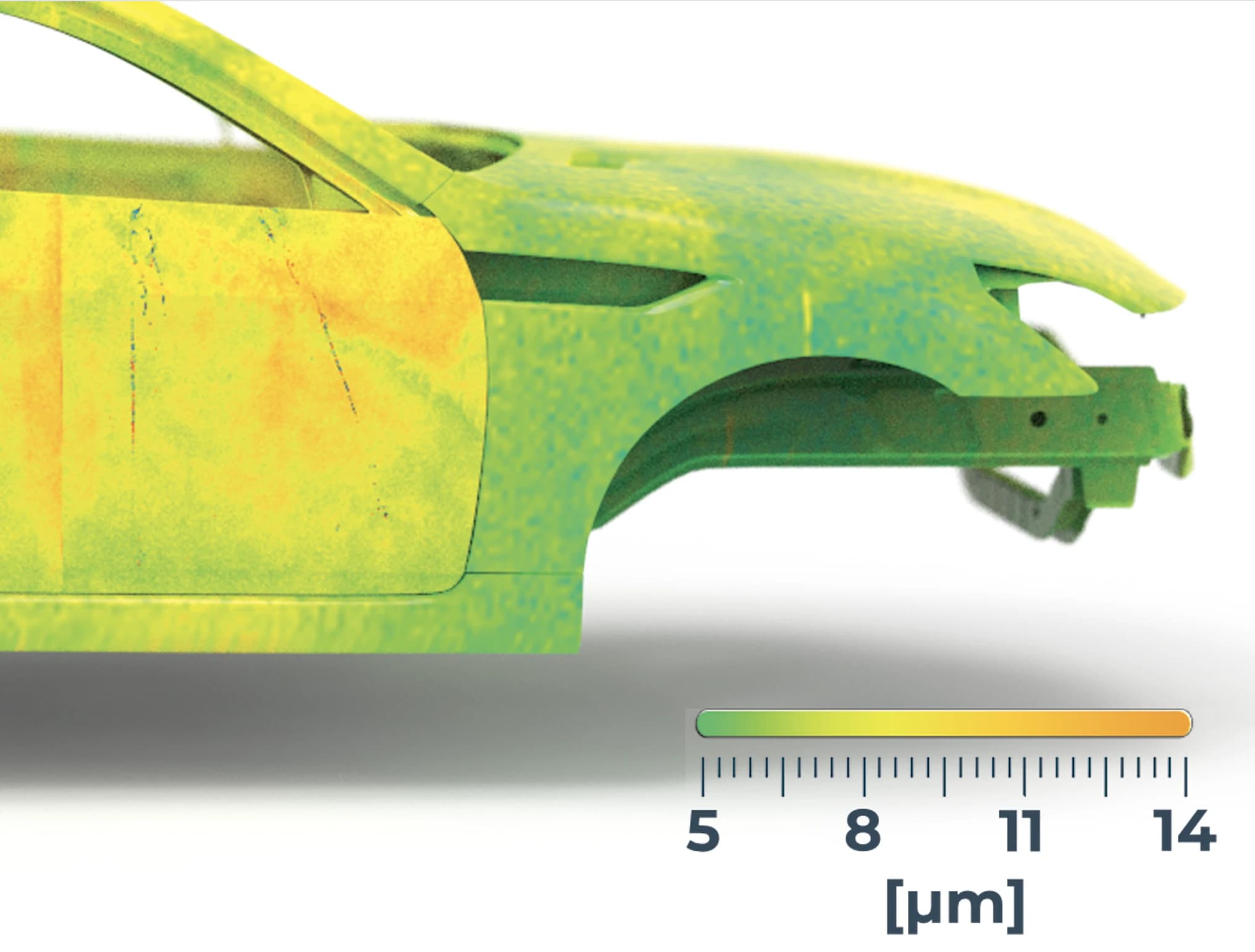

SprayCapture® combines hardware and software to give your paint shop precise, actionable data from daily operations. It provides real insight into the coating process, helping you stabilize production, reduce scrap, and achieve flawless results faster. From bumpers and car bodies to the smallest interior parts — SprayCapture® ensures true process control from primer to clear coat.
Request trial
Measurement in the wet stage
Data driven analysis
No subjective judgements
Quality improvement
5–10%
Save on paint
40–60%
Save time
3–15%
Reduce scrap
1–2 days
Typical implementation frame
Objective evaluation of digitized data.

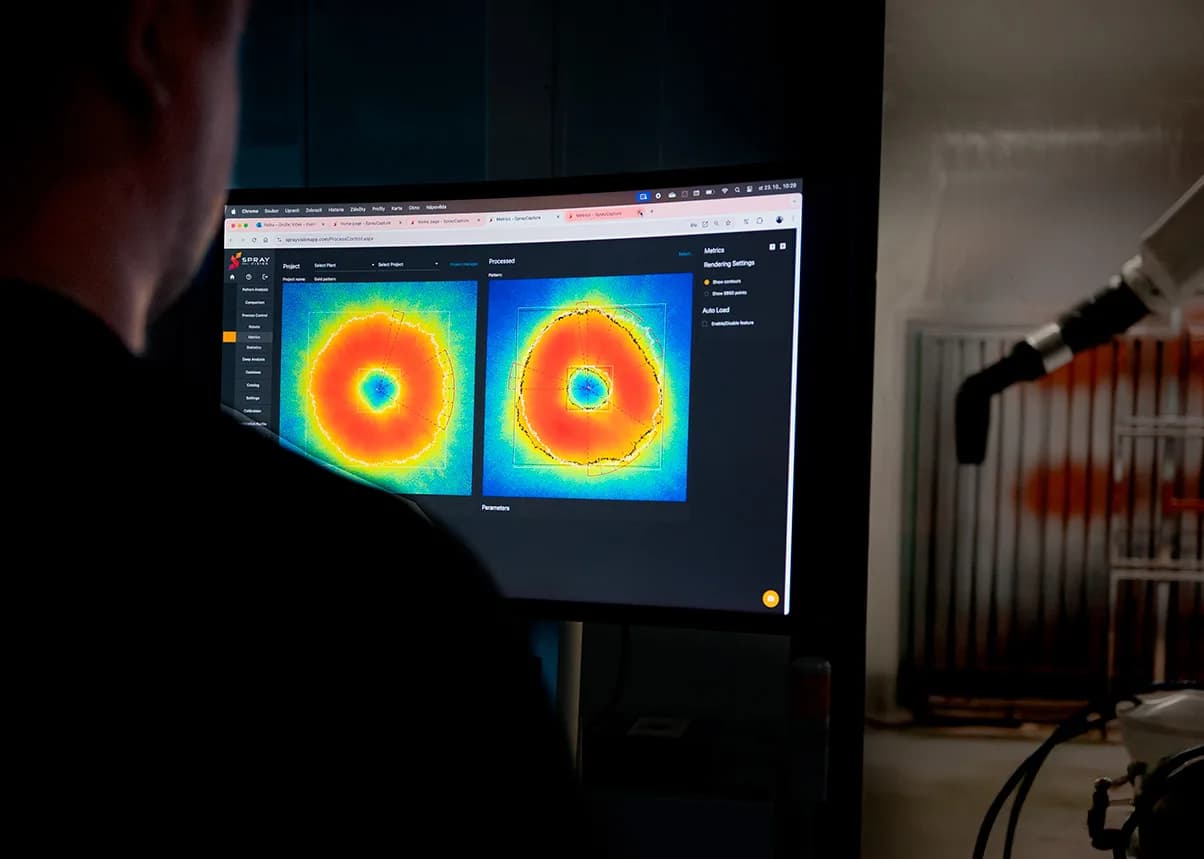

SprayCapture® replaces subjective judgments with data-driven process stability. Analyzing static and dynamic spray patterns helps identify irregularities early, reduce scrap, and keep production consistent. All measurements are stored in daily statistics, giving you a transparent history of your spray performance.

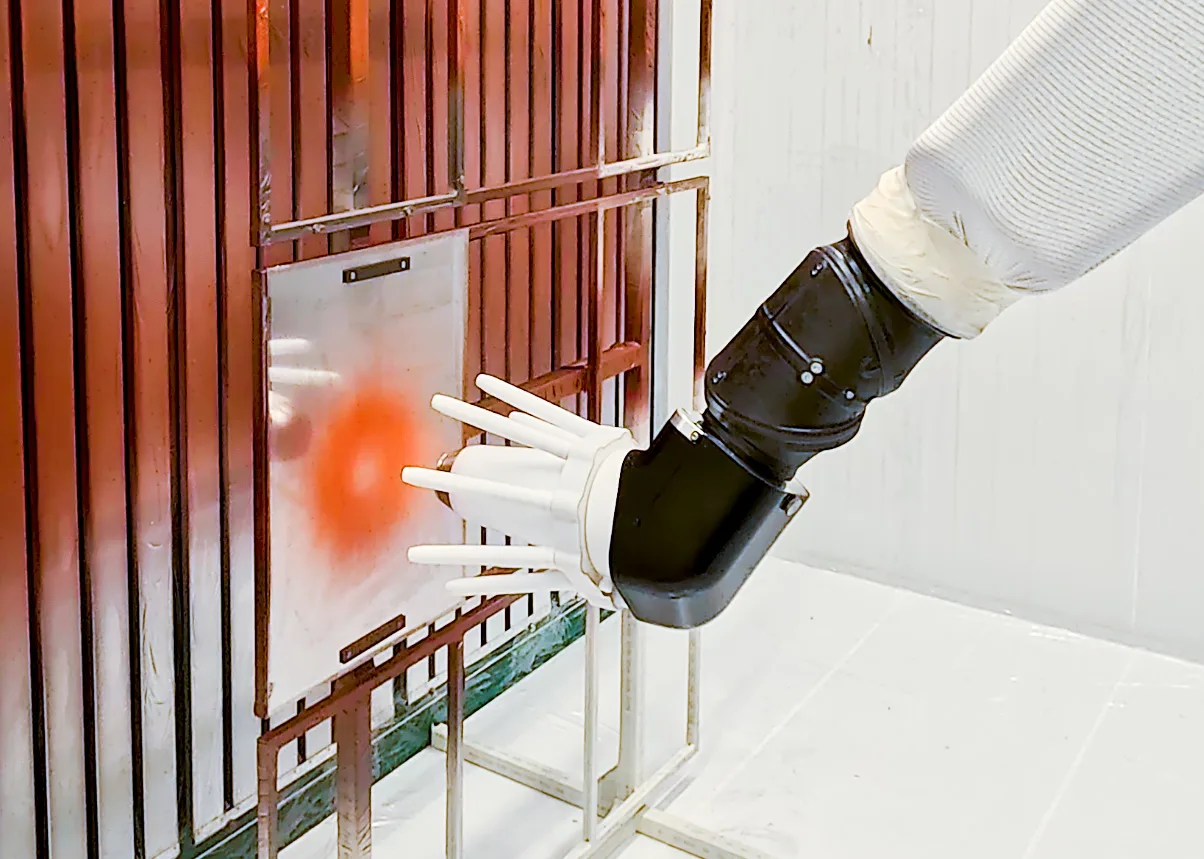

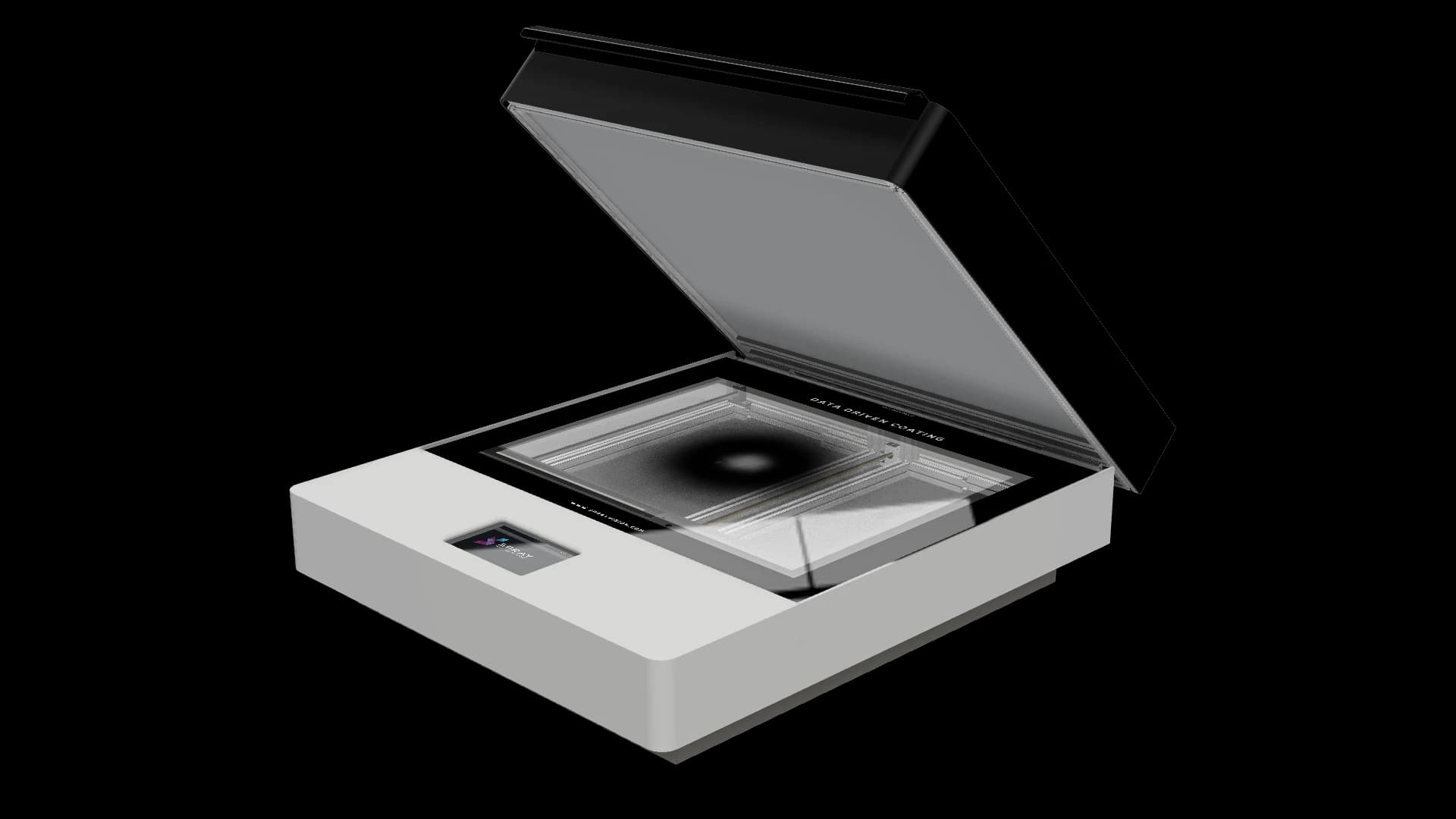

spray onto a transparent surface before placing it into the capturing unit.

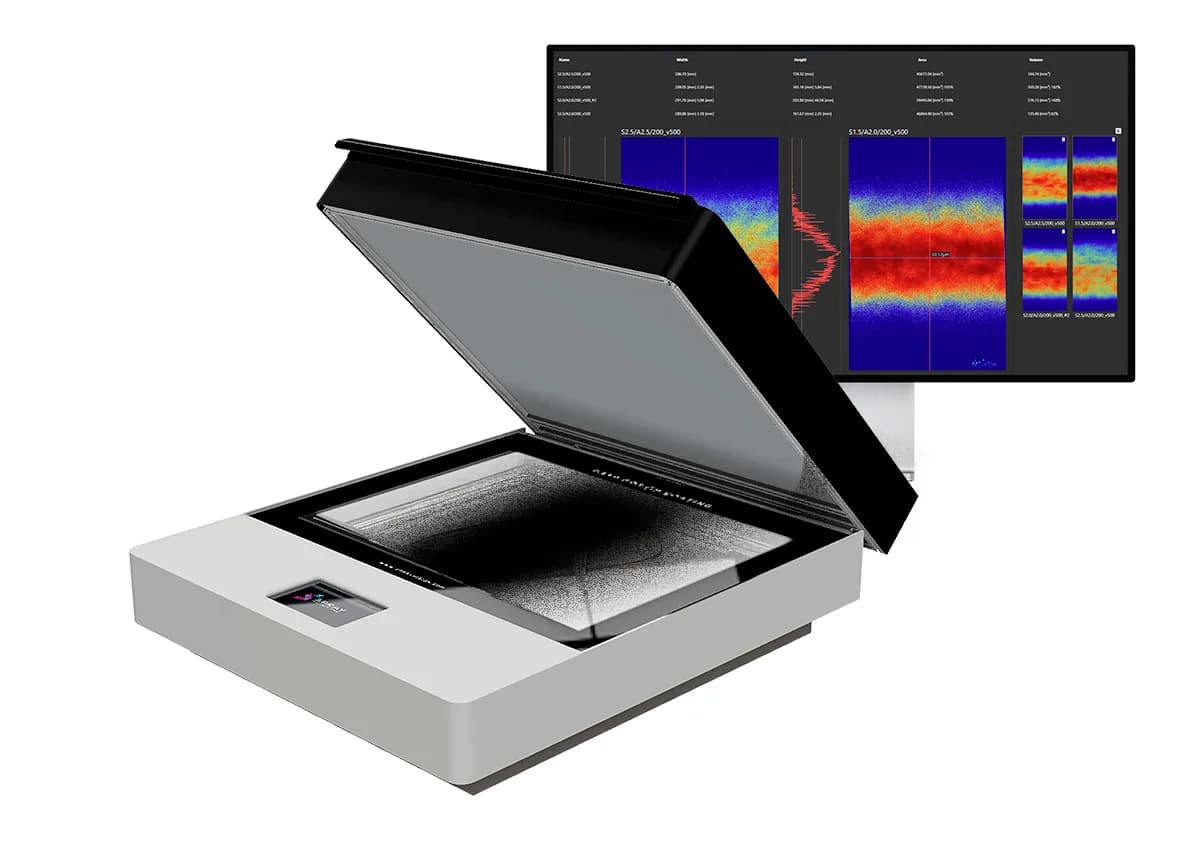

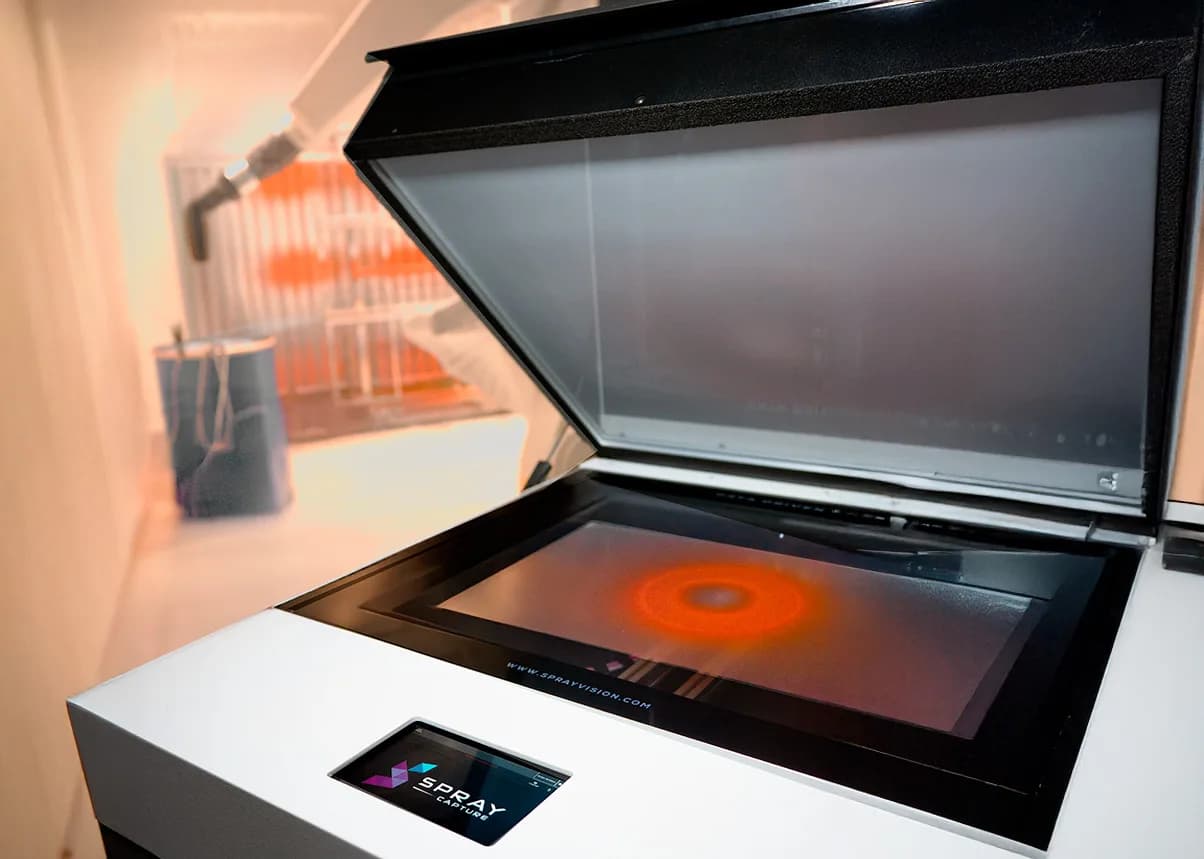

the unit transmits light through the coated sample to evaluate the film build once the unit is closed.

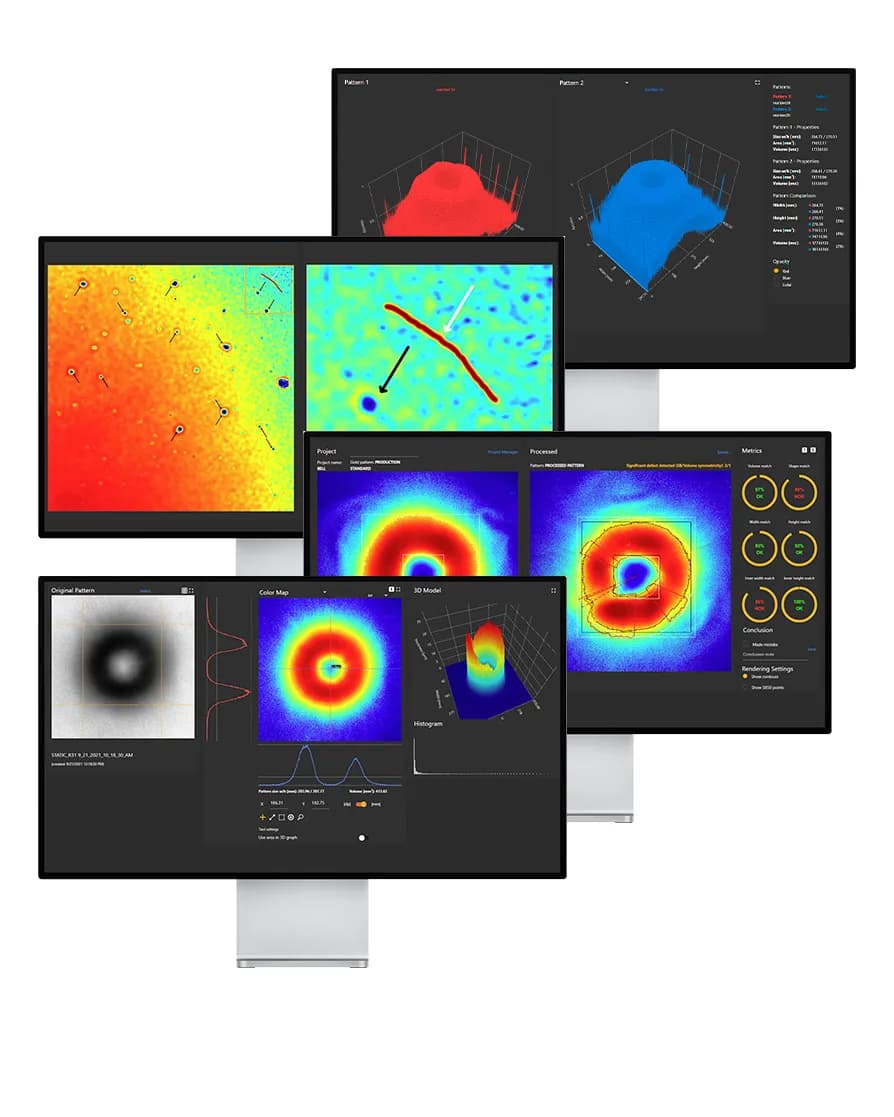

within seconds, measurement data are digitalized and prepared for coating insights such as surface thickness measurement, process control, 2D and 3D pattern comparison, and pattern analysis and control.
Core features.
- Comparison of production pattern with verified standard
- Independent comparison of size, shape, and volume
- Mark of defect with suggested solution

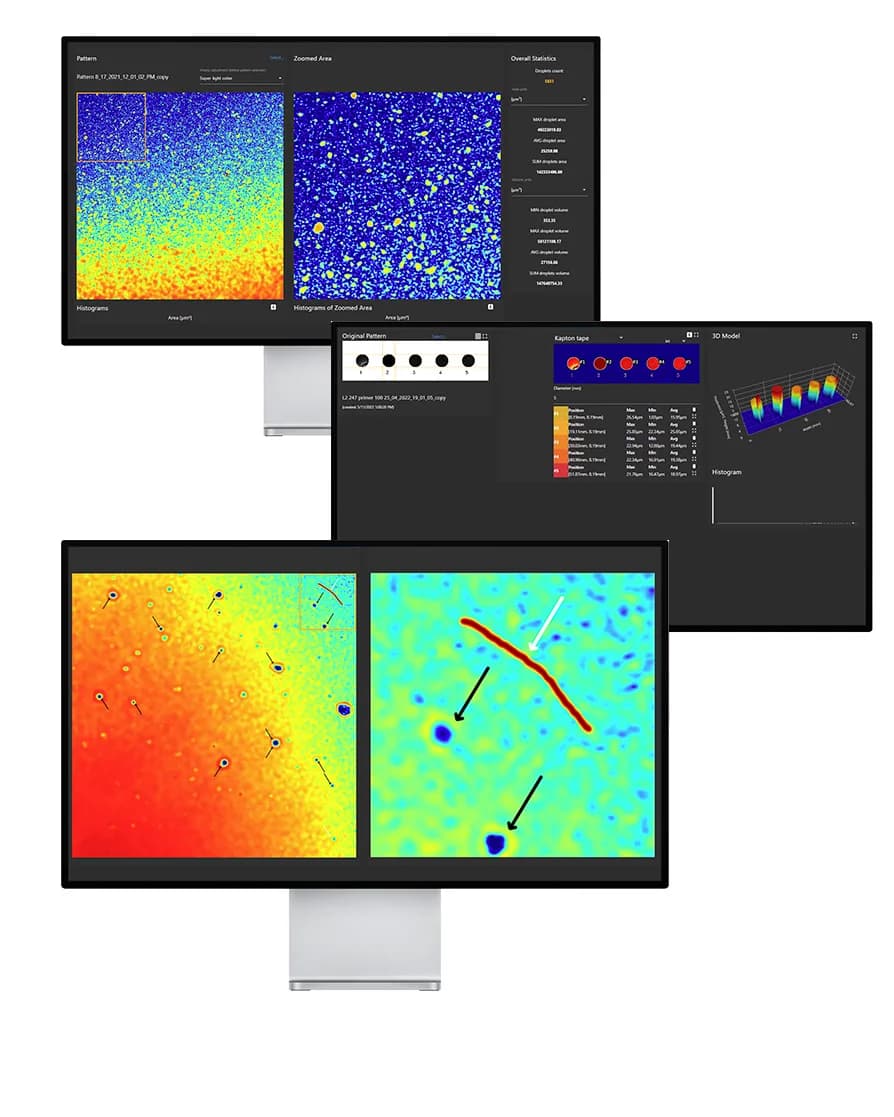

- Basic analysis - Understand and analyze your film build in a selected area or sprayed pattern.
- Contamination analysis - Determine the type and origin of contamination, whether it is grease or solid particles.
- Droplet analysis - Check all the details on your film build till the level of droplets and paint atomization

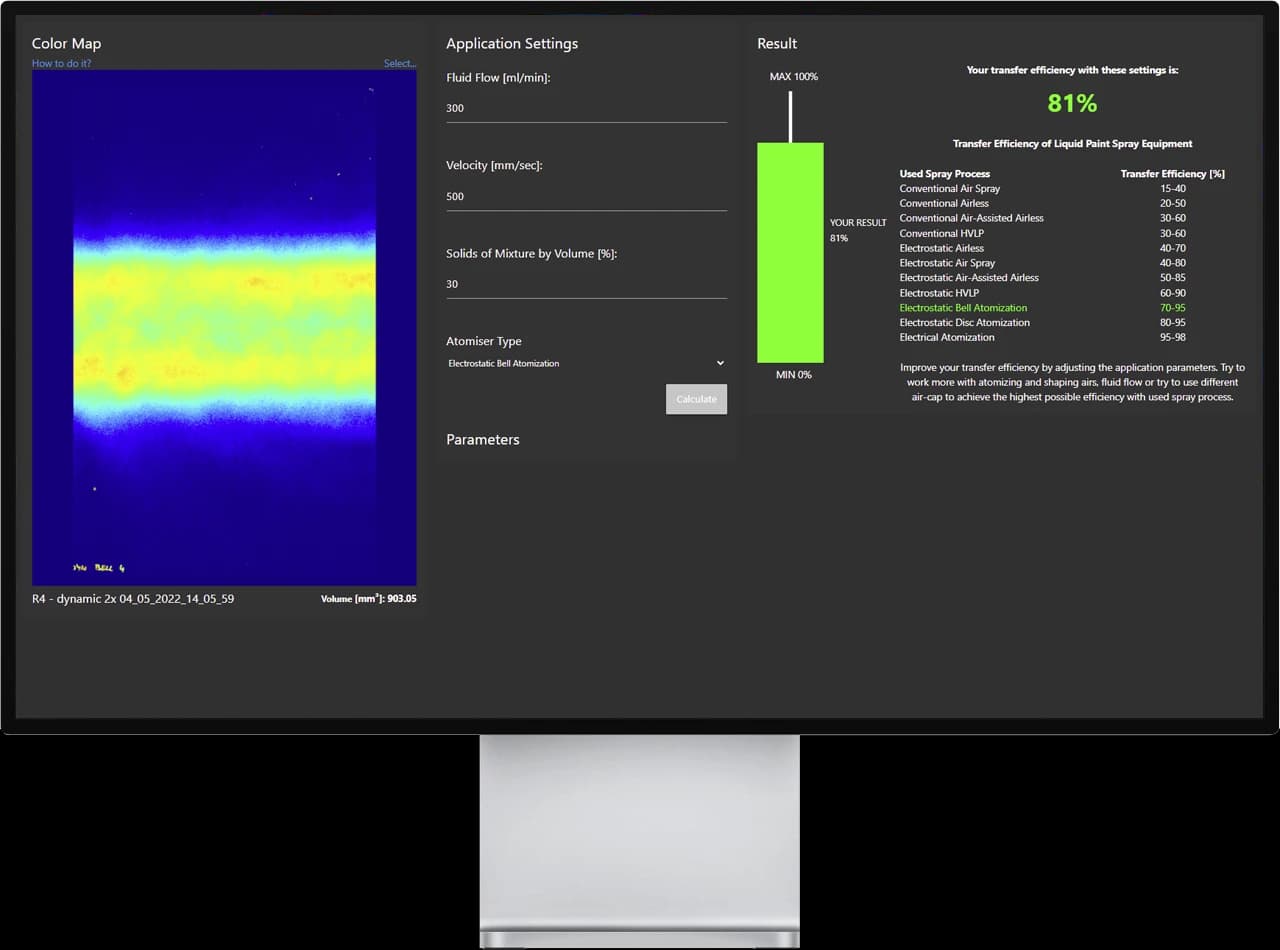

SprayCapture calculates transfer efficiency with precision, helping you cut paint consumption, lower costs, and improve sustainability.
- Uneven thickness? SprayCapture instantly shows the cause and guides you to the fix.
- Wet-stage thickness measurement – immediate insights for faster paint or part changes.
- Stabilise your process with data directly from your production line.
- Clear, real-time insights into material usage and surface coverage.
From measurement to simulation – SprayCapture delivers real production data that can be directly used in SprayBrush for simulation-based optimization and parameter validation.
No software or hardware modifications to the robot are required. Our solution works completely independently of the painting robot or line control system.

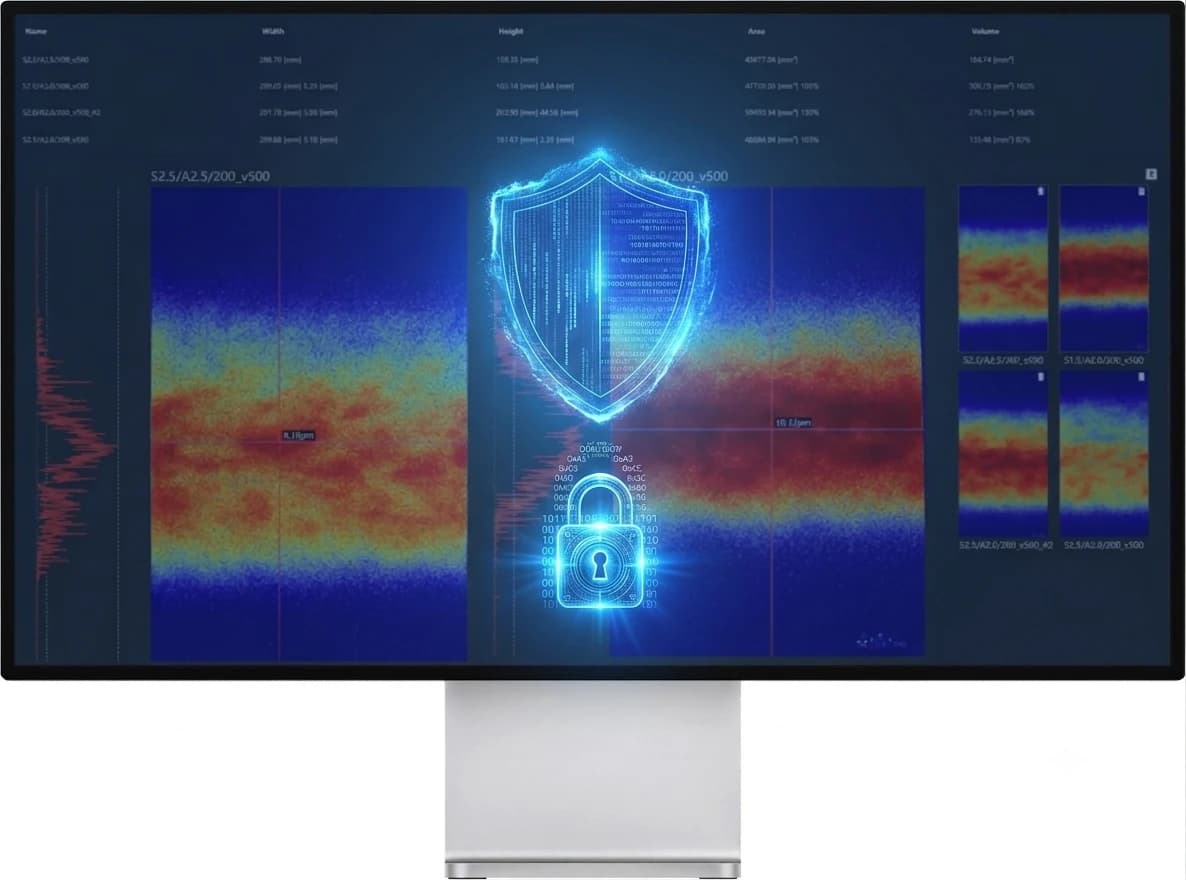

Access your data from anywhere and collaborate easily, supported by a secure, cloud-based infrastructure that ensures scalability and smooth performance.
Getting there
From first call to your ROI report.
Five steps. The third is why the fourth works, and the fifth turns it into your own numbers.
Talk about your coating goals
30 to 45 minutes, onlineWhat you are trying to fix, material cost, a defect, distribution, or a process you cannot prove is stable. We say plainly whether a trial is the right instrument for it.
Scope and date
Usually within a weekWe agree the parts, the coatings, the priority topics and who will be involved on both sides. Then we fix a date.
Readiness check
Before the dateThe joint checklist, the preparation material for your team, and sign off from both sides. No blocking open points, no travel.
Trial
1 day, sometimes 2In your paint shop. If you would rather see the method before committing booth time, we can run it in our lab on parts you send us.
Your ROI report
A few days after the trialA written summary of what SprayCapture measured on your line, paint savings, scrap reduction, and payback time for your specific process, not a generic brochure number.
FAQ.
How much paint can SprayCapture save?
Results depend on the specific part and use case, but typically customers save 5 to 10% of paint.
Where can we see the solution in action?
SprayVision offers direct facility demonstrations. We collect the data at a time agreed with you, for example during a maintenance break or a non-productive shift.
Do the coatings need to be cured or dried before measurement?
SprayCapture measures wet film thickness immediately after spraying, delivering results within seconds. No drying or curing is needed, enabling operators to take immediate corrective action. Results can also be verified after curing or cross-checked with a Permascope.
Do you support small parts (e.g. interior components)?
Yes. For small or complex parts, special Kapton tapes and sticky measurement points enable precise and repeatable measurements on compact components.
Do you support clear coat measurement?
Yes. The solution evaluates full coating systems and layers, including clear coat, base coat, and primer, independent of color or material type.
Does SprayCapture require modifications to the painting robot or line control system?
No. SprayCapture is a stand-alone solution working independently of the painting robot or line control system, requiring no software or hardware modifications.
Is this an inline solution?
The solution operates outside the paint booth, simplifying implementation and eliminating complex ATEX-certified inline installations.
Is the system mobile or fixed?
SprayCapture is fully flexible.
