Better coating parameters.
The film on the body is fixed by your spec. Every drop that misses the body is overspray you pay for twice: once as paint, once as sludge. A better parameter window puts more of each drop where it belongs.
7β10 %+
typical paint savings with SprayBrush
β15 %
paint flow, same film build
70 % 82 %
transfer efficiency
30 15
units of overspray
Paint flow, transfer efficiency and overspray: illustrative example.
Same film, less paint.

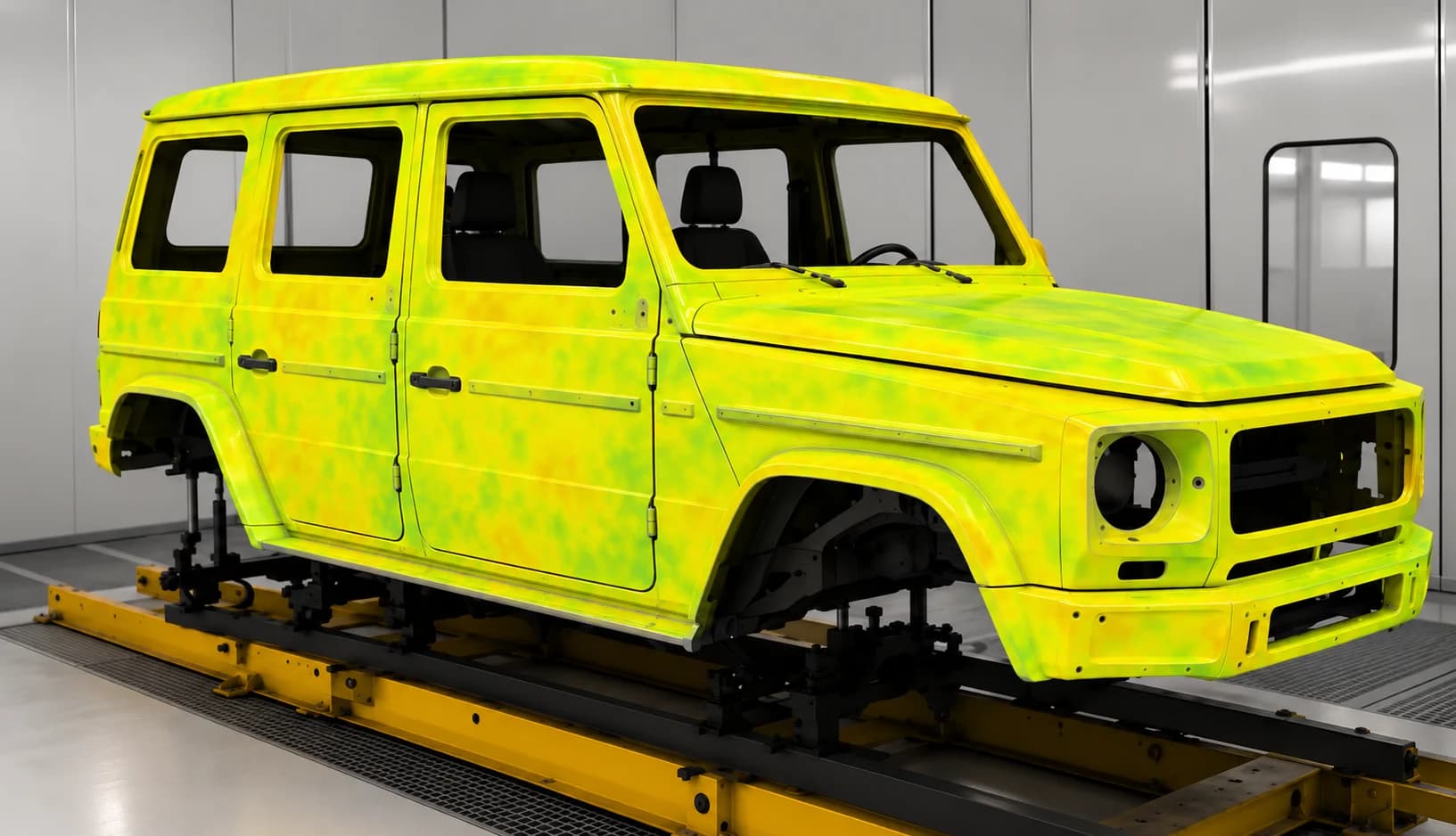

Illustrative70on the body

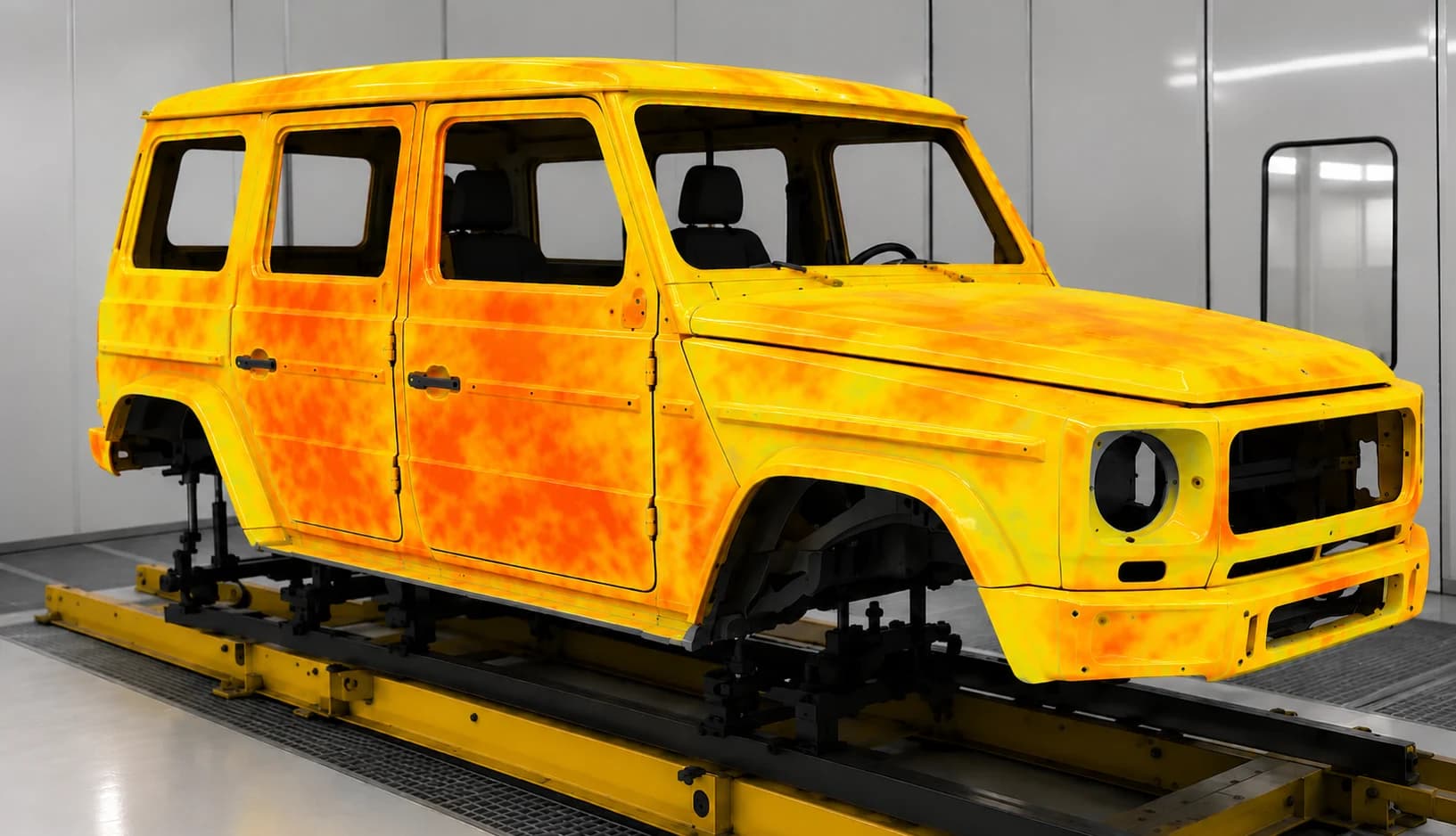

30overspray
70on the body
15overspray
15saved
Same paint on the body = same film build
Where does the paint go?
Transfer efficiency
70 % 82 %
More of each drop lands on the body.
Overspray
β50 %
Half the paint into the booth, less sludge to dispose of.
Paint flow
β15 %
The same film build with less paint.
What SprayVision tunes.Six parameters, set together
When more of each drop lands on the body, you need less paint for the same film. In this example the flow comes down from 100 to 85 % and the film build stays in spec.
β15 % flowSame film buildShaping air sets how wide the pattern opens. The right setting gives a narrower, denser pattern that lands on the body instead of drifting past it.
Narrower patternLess driftBell speed decides droplet size. Finer is not always better: very fine droplets float away into the booth. SprayVision finds the speed that keeps the appearance and the droplets on target.
Droplet sizeAppearance keptThe electrostatic charge pulls droplets onto the body. Tuned together with flow and air, more of them arrive instead of ending up as overspray.
More wrapHigher TERobot speed and paint flow together set the film build. SprayVision balances them, so the lower flow still reaches the specified thickness.
Film-thickness spec heldSB50 is the pattern width at half of its peak thickness. Matching the overlap between passes to SB50 gives an even film without coating the same area twice.
Even filmNo double coating
Parameter 1 of 6
Paint flow
When more of each drop lands on the body, you need less paint for the same film. In this example the flow comes down from 100 to 85 % and the film build stays in spec.
Parameter 2 of 6
Shaping air
Shaping air sets how wide the pattern opens. The right setting gives a narrower, denser pattern that lands on the body instead of drifting past it.
Parameter 3 of 6
Bell speed
Bell speed decides droplet size. Finer is not always better: very fine droplets float away into the booth. SprayVision finds the speed that keeps the appearance and the droplets on target.
Parameter 4 of 6
Voltage
The electrostatic charge pulls droplets onto the body. Tuned together with flow and air, more of them arrive instead of ending up as overspray.
Parameter 5 of 6
Robot speed
Robot speed and paint flow together set the film build. SprayVision balances them, so the lower flow still reaches the specified thickness.
Parameter 6 of 6
Overlap = SB50
SB50 is the pattern width at half of its peak thickness. Matching the overlap between passes to SB50 gives an even film without coating the same area twice.
Stays the same
- Atomizers
- Robots & paths
- Film-thickness spec
- Appearance
Gets tuned
- The parameter window
Six parameters, set together from measured spray patterns instead of trial and error.
You gain
- Higher transfer efficiency
- Less overspray & sludge
- Lower VOC & booth load
- Lower COβ footprint
